3-4 Door Interlocking

FEATURES

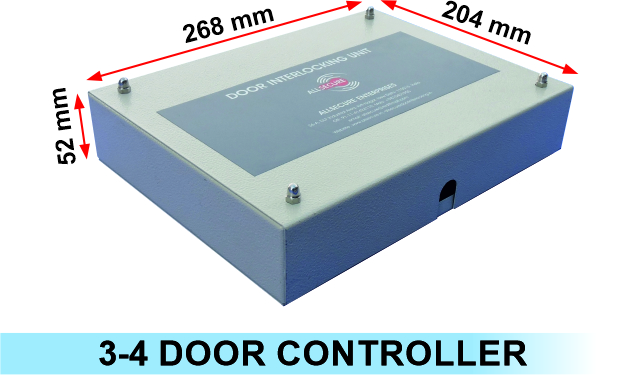

1. Industrial & Aesthetically designed I.C based Controller, Controlling 3-4 Doors.
2. Master & Slave Design (8 to 16 Door):-
   • Customer can program Logic for door interlocking at his own end as per his requirement.
   • Upto 4 Slave Cards (upto 4 doors in each card) can be programmed with the Master Card. So total number of doors can be 16.
3. LCD Display (8 to 16 Door):-
   • For Programming
   • For seeing doors interlock Logic
4. Master & Slave PCB Design: In case malfunctioning, entire Interlocking Controller can be replaced within 15 seconds by supplanting a new PCB without using any tools, or touching any wires.
5. Fully programmable time interval for lock opening.
6. Clearly marked connections on the PCB.
7. REX Switch with Clear door status indication: Locked, Wait, Go (if any of the other doors is open).
8. Soft touch key on the REX switch.
9. Buzzer sound on the emergency switch.
10. Emergency Switch Integration for overriding the system.
11. Access Control Integration for authorized only entry.
12. UV Light & Air Curtain Integration.
13. Fire Alarm Integration.
14. Emergency Siren Integration.
15. Privacy Feature with Soft touch Privacy Switch (Wait Light will blink during use).

WORKING:

1. At the default stage, all doors connected to the unit are closed & locked. The Rex switches on all the doors indicate the status as Locked.
2. The user approaches the door and presses the REX Switch (Request to Exit). The indicator status on that particular door changes to Go and the door is unlocked for the user to pass. Simultaneously, the indicator status on all the other doors changes to Wait. Now a request placed by any other user on any other door indicating Wait will be declined.
3. After 5 seconds (or whatever time is programmed), the unlocked door also gets locked and the interlocking system is resumed to the default stage, ready for use.

3-4 Door Interlocking Manufacturers in India

As one of the top 3-4 Door Interlocking Manufacturers in India, we are proud to offer a wide range of interlocking systems that meet the highest industrial standards. With over 18 years of experience, our advanced door interlocking systems ensure efficient and effective minimization of microbiological and particulate contamination of air locked area. As 3-4 Door Interlocking Manufacturers in India, we customize our solutions based on specific client requirements, making sure they integrate seamlessly with the clients others systems.

3-4 Door Interlocking Suppliers in India

ALLSECURE ENTERPRISES are trusted 3-4 Door Interlocking Suppliers in India, delivering premium quality systems designed to effectively dicontaminate and sanitize air locked areas. Our systems ensure that only one door opens at a time, preventing contamination in controlled environments. As leading 3-4 Door Interlocking Suppliers in India, we guarantee timely deliveries, exceptional customer service, and reliable products that enhance operational safety and efficiency.

3-4 Door Interlocking Exporters in India

Being one of the foremost 3-4 Door Interlocking Exporters in India, we supply our cutting-edge systems to international markets. Our systems are known for their precision, reliability, and adherence to global standards. As dedicated 3-4 Door Interlocking Exporters in India, we ensure that our products are designed to meet the specific requirements of industries like pharmaceuticals, 5-7 Door Interlocking, clean rooms, and more, ensuring superior performance and long-lasting durability.
