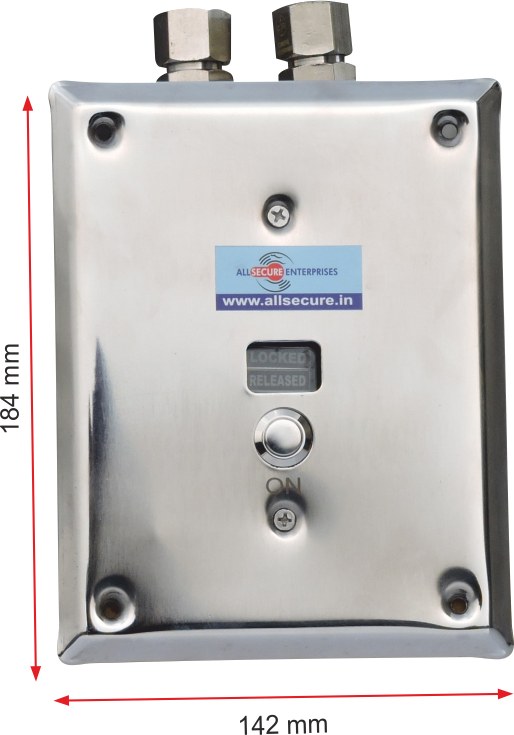

Rex Switch / Emergency Switch: Flame Proof
Flame Proof Emergency Switch in India
Flame Proof Pass Box Interlocking in India
Flame Proof DPB / SPB in India
• TE Report No.: KLPL/ Ex/ 15-065
• Standards: IS/IEC 60079-0: 2007, IS/IEC 60079-1: 2007
• Marking: EX D IIB T6 GB
Specification :
• LM-6 Aluminium Enclosure
• Display: Locked & Released (Emergency Button without Display)
• Dimension: 104 x 84 × 37 mm
• SS Panel Dimension: 181mm x 140mm
• Powder Coated

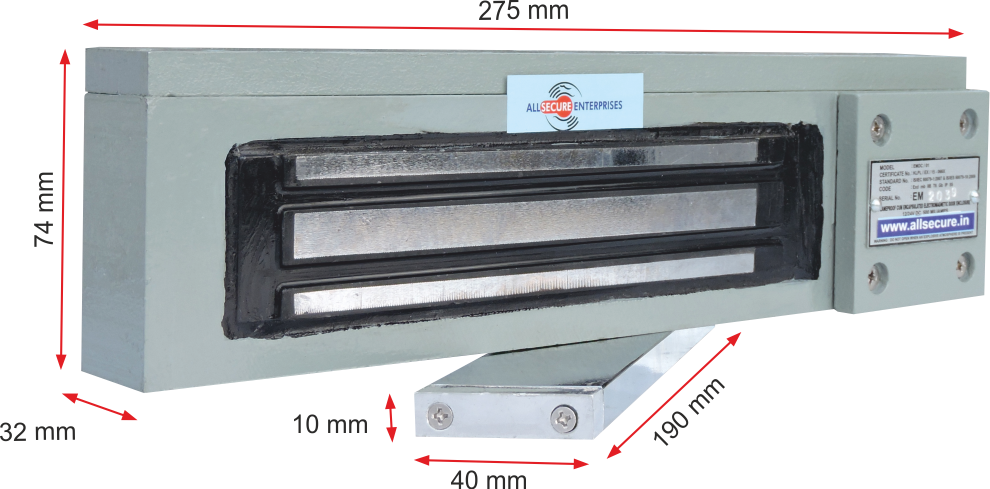

EM Lock: Flame Proof
Flame Proof EM Lock in India
Flame Proof Exit Switch in India
Flame Proof Door Switch in India
• TE Report No.: KLPL/Ex/15-066X
• Standards: IS/IEC 60079-0: 2007, IS/IEC 60079-1: 2007, IS/IEC 60079-18: 2009
• Marking: Ex d mb IIB T6 GB
Specification :
• Voltage Tolerance: ±15%
• Voltage Input: 12/24V DC
• Current Draw: 480mA at 12VDC; 240mA at 24VDC
• Magnetic Contact for Door Status (No Type)
• Holding Force: 600LBS (272KGS)
