Pass Box Interlocking - Normal

Description

The Interlocking System ensures that out of the Number of doors locked by an Interlocking controller, only one door at a time will open and other doors remain closed even if a request is placed to open any other door. This effectively warrants air passing through and minimizes microbiological and particulate contamination of the air locked area and assists in sterilization of products placed inside the pass box, through exposure under UV lights.

Our Range of Pass Box Interlocking Systems

Our range of Pass Box Interlocking Systems offer Dynamic, Static & Timer based Pass Boxes, available in 2-4 Doors.

FEATURES*

1. Industrial & Aesthetically designed I.C. based Controller, Controlling 2 Doors.
2. Mother & Host PCB Design: In case malfunctioning, entire Interlocking Controller can be replaced within 15 seconds by supplanting a new PCB without using any tools, or touching any wires.
3. Fully programmable time interval for lock opening.
4. Clearly marked connections on the PCB.

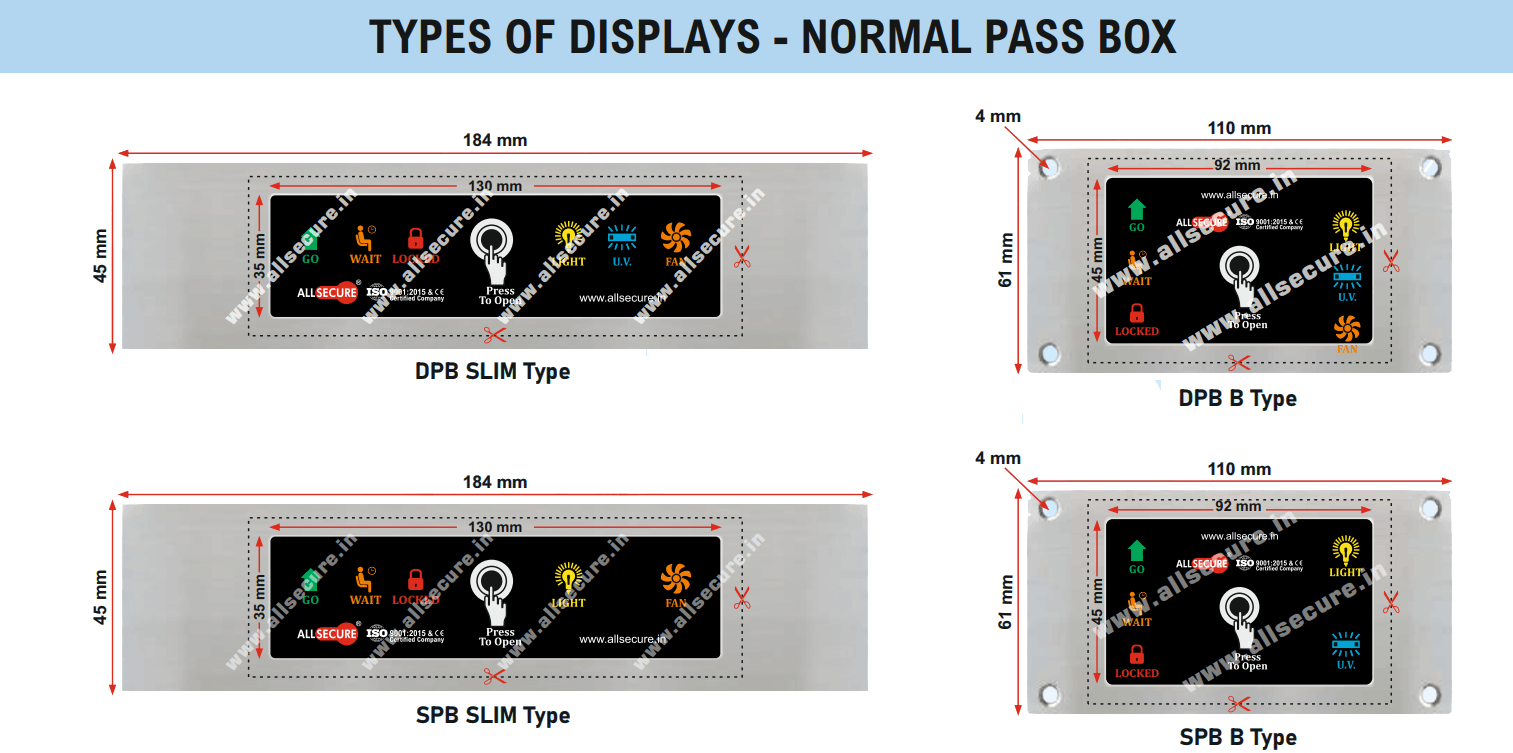

5. Display Panel with Switch & Clear door status indications: Locked, Wait, Go (if any the other doors is open). This helps eliminate confusion in the user's mind and hence eliminates needless fiddling with the doors.
6. Soft touch Button on Display Panel.
7. Emergency Switch Integration to override the system.
8. Buzzer sound on pressing Emergency Switch.
9. Access Control Integration for authorized entry only.
10. Extra Auxiliary Output.
11. Fire Alarm Integration.
12. Emergency Siren Integration.
13. Door open Alert (Time Programmable).
14. Fully Programmable Logic: UV: OFF/ON/24 hrs., LT: OFF/ON/24 hrs. & FAN: OFF/ON/24 hrs.

WORKING :

1. At the default stage all doors connected to the Pass Box Controller are closed & locked. The Display switches on all the doors indicate the status as "Locked". The UV light is on while the Fan and CFL are off (on auto mode).
2. The user approaches the door and presses the Switch (Press to Open). The indicator status on that particular door changes to GO and the door is unlocked for the user to place the product inside the pass box. Simultaneously:
   1. The indicator status on all the other door changes to WAIT.
   2. The UV Light is turned Off.
   3. The FAN & CFL are switched On.
3. During the procedure a request placed by any other user on any other door indicating Wait will be declined.
4. After the door that had been opened by the user is closed, the following functions take place simultaneously:
   1. The FAN & CFL will be switched off.
   2. The UV Light will be turned on.
   3. Status Indicators on all doors changes from Wait to Locked.
   4. UV/LIGHT/FAN can be customised as per requirement to function on Door OPEN/DOOR CLOSE/24 HRS.

PASS BOX INTERLOCKING PROGRAMMING:

1. Keep "Push to Program" button on the Display pressed continuously for 10 seconds.
2. After 10 seconds, the Display will start indicating the interlocking desired level.
3. Set the level as per the pass box, and press any key and the system will come out of programming mode after 5 seconds.

Pass Box Interlocking Normal Manufacturers in India

ALLSECURE ENTERPRISES is a premier name among Pass Box Interlocking Normal manufacturers in India. We specialize in designing and producing advanced pass box interlocking systems that ensure only one door can open at a time. This innovative design effectively minimizes microbiological and particulate contamination, making our systems ideal for sterile environments. As one of the leading Pass Box Interlocking Normal manufacturers in India, our products are meticulously crafted to meet industry standards, ensuring reliability and safety.

Pass Box Interlocking Normal Suppliers in India

As leading Pass Box Interlocking Normal suppliers in India, Allsecure Enterprises prides itself on delivering high-quality interlocking systems tailored to meet the specific needs of our clients. Our extensive range of products includes dynamic, Pass Box Interlocking - Deluxe, static, and timer-based pass boxes, available in configurations of 2 to 4 doors. We focus on providing excellent service as top Pass Box Interlocking Normal suppliers in India, ensuring our customers receive the best solutions for their operational requirements.

Pass Box Interlocking Normal Exporters in India

Allsecure Enterprises is also a trusted name among Pass Box Interlocking Normal exporters in India. We are committed to providing our advanced interlocking systems to international markets, adhering to strict quality control measures and industry standards. Our dedication to innovation and quality has earned us a reputation for excellence, allowing us to serve a diverse range of clients globally as reputable Pass Box Interlocking Normal exporters in India.
