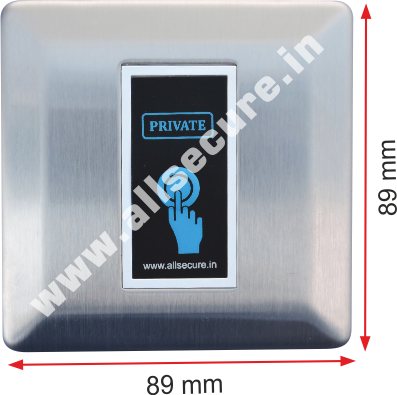

Privacy Switch:
Button to lock specified doors of the interlocking system while changing clothes. When the Privacy Switch is activated all Rex Switches will flash & Buzzer will sound.

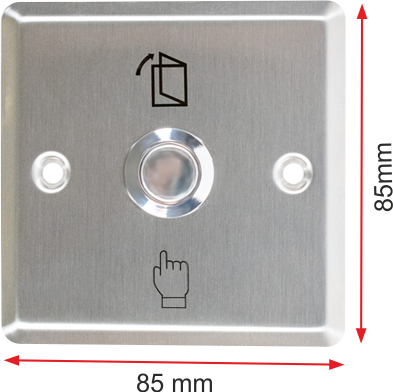

3 × 3 Rex Switch Normal:
EM Lock in India
Exit Switch in India
Rex Switch in India
No Touch Switch in India
2 Led Switch in India
3 Led Switch in India
Exit switch is a push button switch, typically made of stainless steel, designed to be installed on doors to release a lock or gate, usually in conjunction with an access control system. It is a small, square switch with a push button on the front, and it's designed to be easily identifiable with an exit symbol.

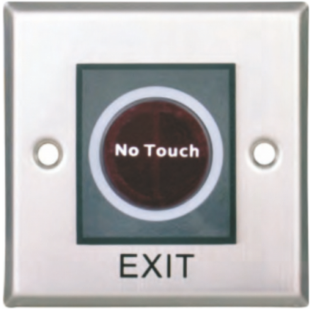

No Touch Exit Switch
Emergency Switch in India
Magnetic Contact in India
EM Lock L Bracket in India
• Dimensions: 22Lx87Wx85H(mm)
• Output Contact: NO/NC/COM
• Input: 12 Volt DC
• Mechanical Life: 500,000 tested
• With Colour Changing LED (Standby/Sensation)

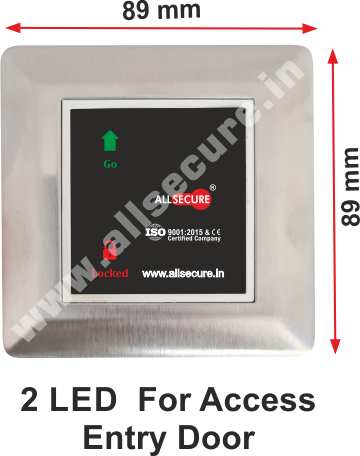

2 LED For Access Entry Door
EM Lock U Bracket in India
EM Lock 300 LBS in India
• Operating voltage: DC 12V ±10%
• Operating current: 300mA
• SS hairline 304 Finish
• Go, Wait, Locked Indications

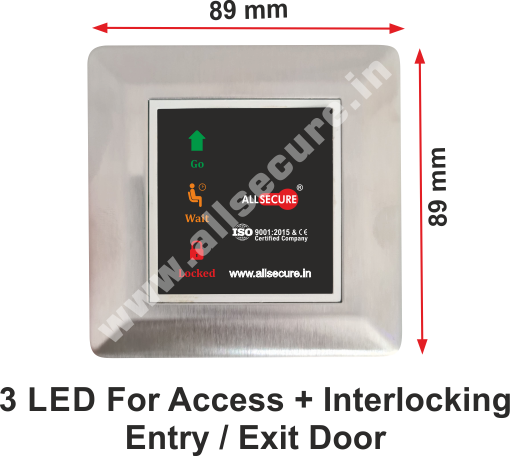

3 LED For Access + Interlocking Entry / Exit Door
• Operating voltage: DC 12V ±10%
• Operating current: 300mA
• SS hairline 304 Finish
• Go, Wait, Locked Indications
Access Control Devices: Card
• Operating voltage: DC 12V ±10%
• Operating current: < 100mA
• Dimensions: 121x78×23mm
• Temperature: 0°C - 60°C
• Operating humidity: 20% - 80%
• Storage: 1000 users
• Card type: EM(ID) card (IC card for options)
• Card Reading Distance: 1 - 15CM

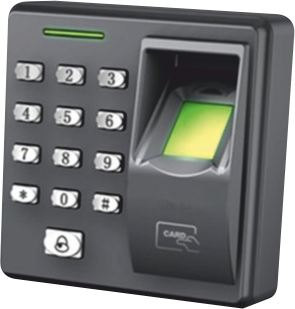

Fingerprint (Without Data)
• Fingerprint Capacity: 500
• RFID Card Capacity: 500
• Password Records Capacity: 500
• Identification Modes: Fingerprint, RFID card, PIN
• FRR: < 1%, FAR: < 0.0001%
• Identification Time: < 0.5 Sec
• Power Adapter: DC 9V~12V

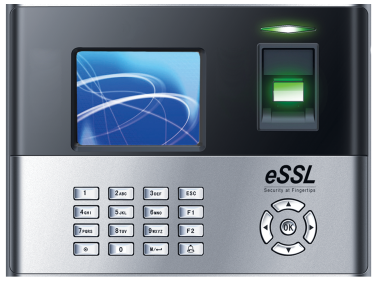

Fingerprint (With Data + Card + Pin)
• Fingerprint Capacity: 10000
• Transaction Capacity: 100000
• Card Capacity: 10000
• Operating Temperature: 0oC - 45oC
• Power Supply : DC 12V -- 1.5Amp
• CPU: 800 MHz 32bit
• Communication: RS485, TCP/IP, USB
• Operating Humidity : 20% - 80%
• Dimension: (WxHxD) 210x157x40 mm
• Display: 2.8 TFT Color Screen
• Fingerprint Sensor: 500 DPI Optical sensor

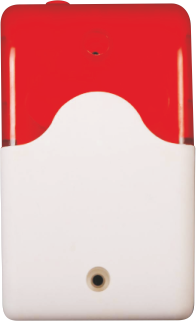

Siren Strobe
• Power Source: 12 Volt DC
• Rated Current: 500 mA
• Output Level: 110 dB/m
• Flashing Rate: 150

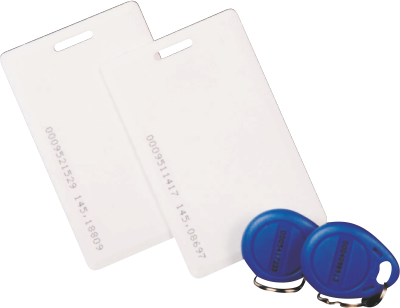

RFID Card & Tags
• Proximity RF frequency of 125 Khz.
• Mifare smart card fequency 13.56 Mhz.
• Transmit data through building material.
• Use for Access Control & Time Attendance.

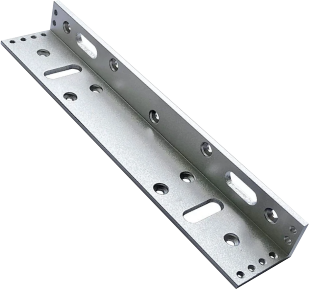

EM Lock L Bracket
• Opening Mode: 90 Degree Door
• Door Mode: 90 Degree Door
• Dimension: 250 * 48 * 30(LWXD)
• Weight: 0.378 Kg.

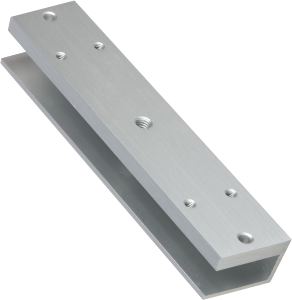

EM Lock U Bracket
• Opening Mode: In/Out-Swing Door
• Door Mode: 90 Degree Door
• Dimension: 180 * 43 * 28(LWXD)
• Weight: 0.42Kg.
