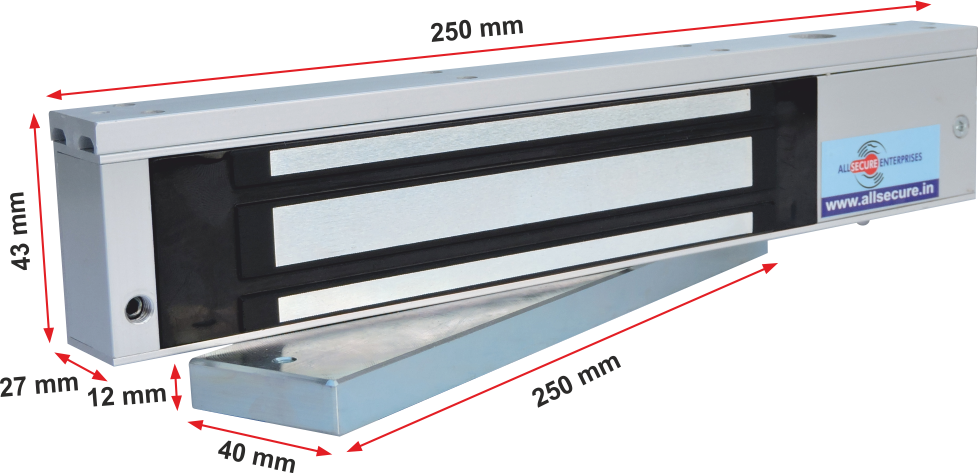

EM Lock 600LBS
EM Lock in India
Flame Proof EM Lock in India
• Model: 600C-SP
• Lock Size: 250 x 48 x 25 mm³
• Magnet: 250 x 43 x 27 mm³
• Armature: 160 x 40 x 12 mm³
• Voltage: 12V
• Current: 700mA at 12V
• Holding Force: 600 LBS
• Unit Weight: 1.8kg (Approx.)
• Suitable For: Wooden, Glass, Metal, Fireproof Doors
• Feature: Fail Safe

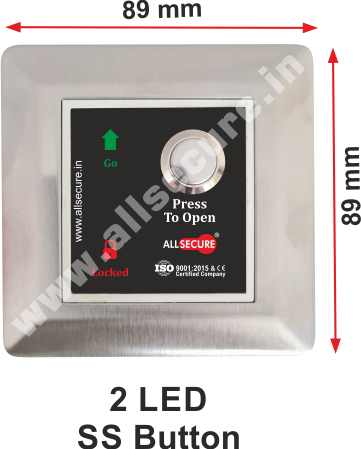

Rex Switch: 2 LED SS Button
Button / No Touch to unlock the door. LED indicators show Locked, Wait, and Go status for user clarity, minimizing door misuse or confusion.

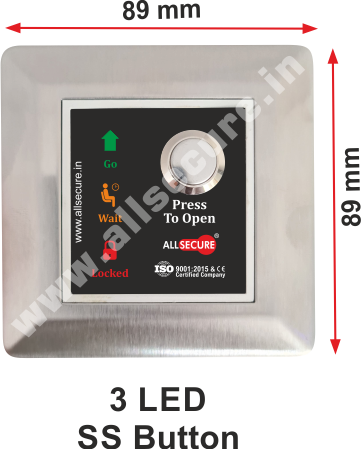

Rex Switch: 3 LED SS Button
Button / No Touch to unlock the door. LED indicators show Locked, Wait, and Go status for user clarity, minimizing door misuse or confusion.

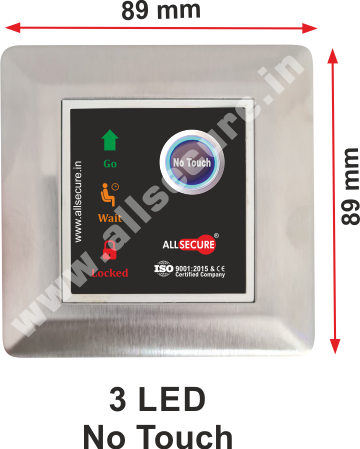

Rex Switch: 3 LED No Touch
Button / No Touch to unlock the door. LED indicators show Locked, Wait, and Go status for user clarity, minimizing door misuse or confusion.

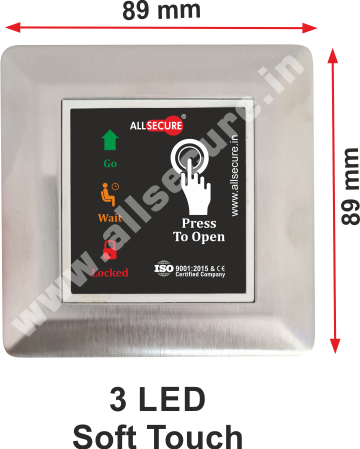

Rex Switch: 3 LED Soft Touch
Button / No Touch to unlock the door. LED indicators show Locked, Wait, and Go status for user clarity, minimizing door misuse or confusion.

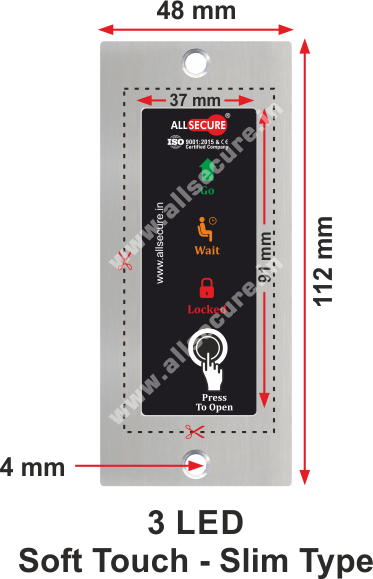

Rex Switch: 3 LED Soft Touch Slim Type
Button / No Touch to unlock the door. LED indicators show Locked, Wait, and Go status for user clarity, minimizing door misuse or confusion.

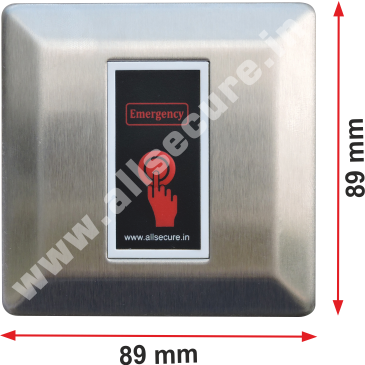

Emergency Switch in SS (Soft Touch)
Overrides interlocking system and unlocks all doors in emergencies like fire or gas leaks. All Rex Switches display "GO" status when activated.

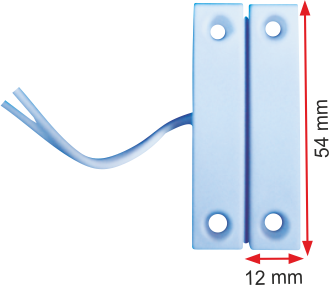

Magnetic Contact Wired: 2 / 4 Wire
• Surface mount with screw or adhesive (optional)
• Side flanges for easy mounting
• 18" Long wire leads
• Operate Gap: ¾" (19.0mm) minimum

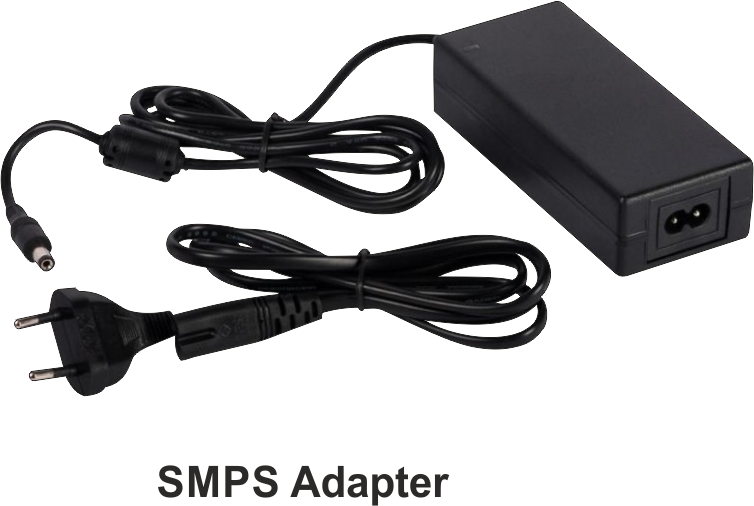

Power Supply
• Model: 12V 3/4/5/7/10/15/16/30 Amp
• AC IN: 130-270V 50/60Hz
• DC OUT: 12V
• Operating Temp: 10-55°C
• With Surge Protection & LED Indication
